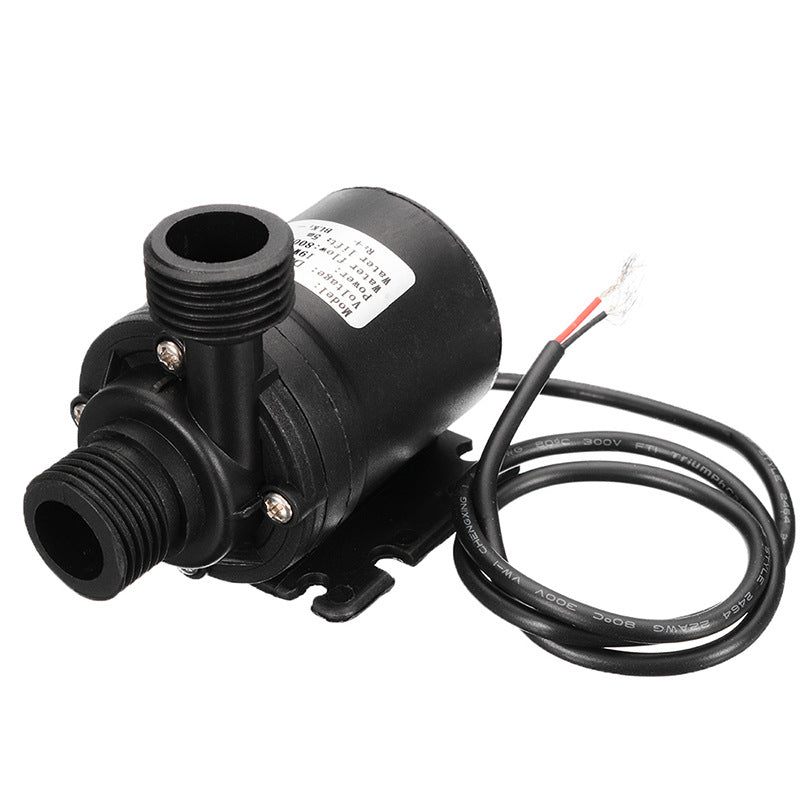

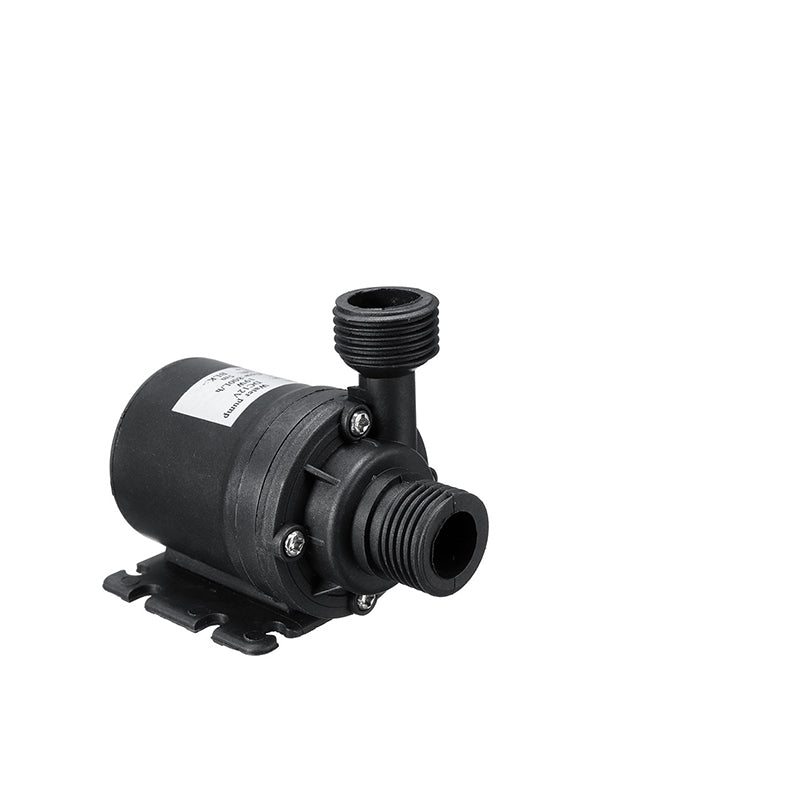

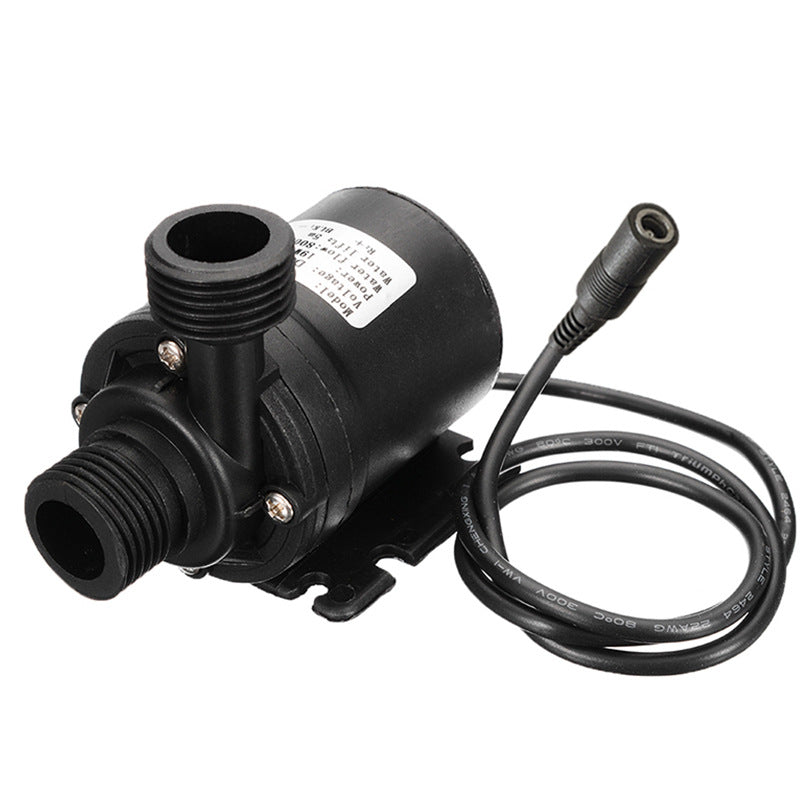

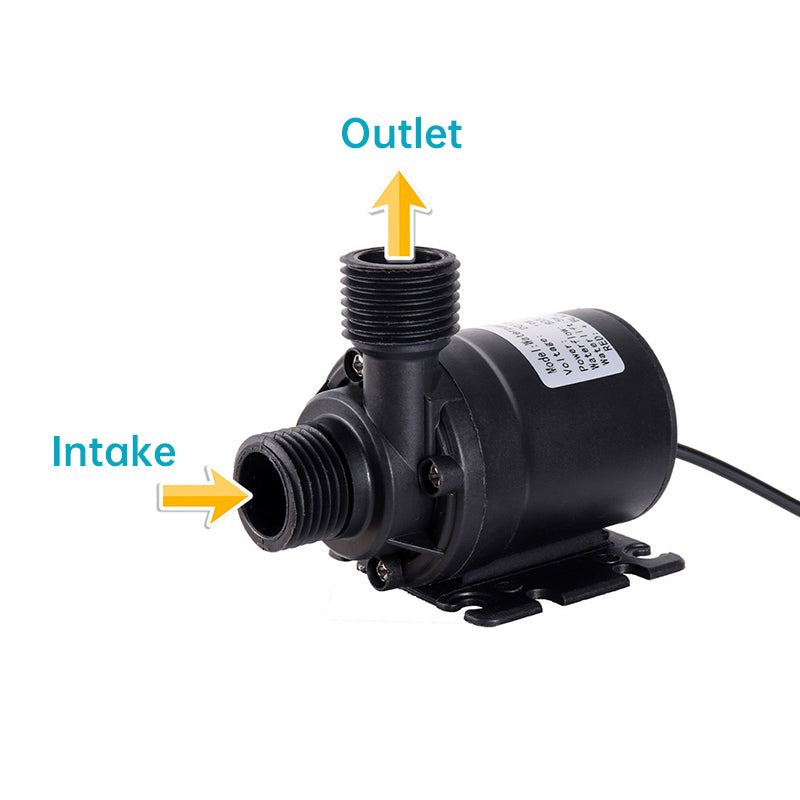

Mini Brushless DC Submersible Water Pump – 12V/24V

A compact, reliable submersible pump built for the long haul. This brushless DC pump is maintenance-free, whisper-quiet, and suited to a huge range of applications — from aquariums and hydroponics to EV cooling systems, PC liquid cooling, and portable camp showers.

Available in 12V and 24V configurations with bare wire or DC connector options.

Specifications

Voltage: DC 12V (7–14V) / DC 24V (5–28V)
Connection: Bare wire or DC female connector (5.5x2.5mm)
Power: 12V 19W / 24V 22W
Flow Rate: 13L/min
Max Head: 5.5m

Features

- Brushless motor — long lifespan, pollution-free operation
- Fully waterproof — epoxy-encapsulated stator and circuit board
- Vibration-dampening silicone base for quiet, stable installation
- Anti-jam technology for reliable starts in complex environments
- Stainless steel or ceramic shaft for high wear resistance
- Supports PWM, 0–5V analog, or potentiometer speed control
- Can be connected in series for greater head height
- Ultra-low failure rate (<0.05%)

Common Applications

Aquariums, hydroponics, PC liquid cooling, EV cooling, portable showers, solar fountains, water-cooled appliances, irrigation, and more.
